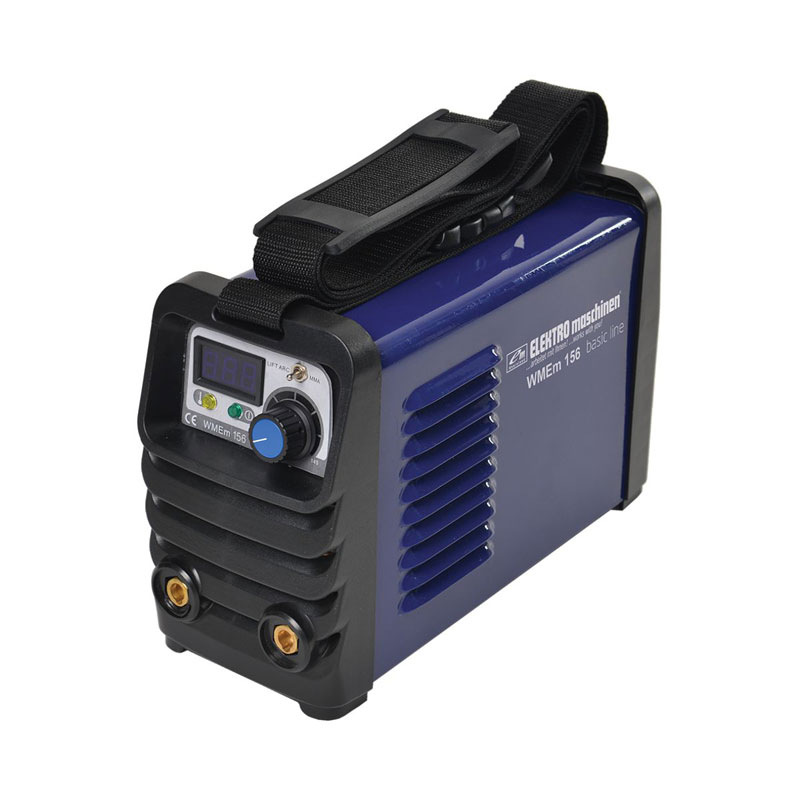

Compact and portable inverter for MMA
Durable and impact resistence design with OKC cable conectors
Easy to operate - only current setting needed
Capable to work on generator power source
Over current protection / Over voltage protection
Automatic hot start
Automatic arc force
Automatic anti-stick function
Full color packing
Specifications
Main fuse (A):16
Frequency (Hz):50/60
Setting range (A):20-140
Output max at 60% duty cycle, (MMA) A/V:135/25,4
Output max at 100% duty cycle, (MMA) A/V:95/23,8
Rated output voltage (V):20,8 - 25,6
Open circuit voltage (V):59
Power factor at max current:0,93
Electrode diameter (mm):1,6-3,2
OKC:16
Protection class:IP21S
Voltage (V/Hz):230/1 +/- 15%
Dimensions (LxWxH) in mm:310x115x190
Weight (kg):4,4

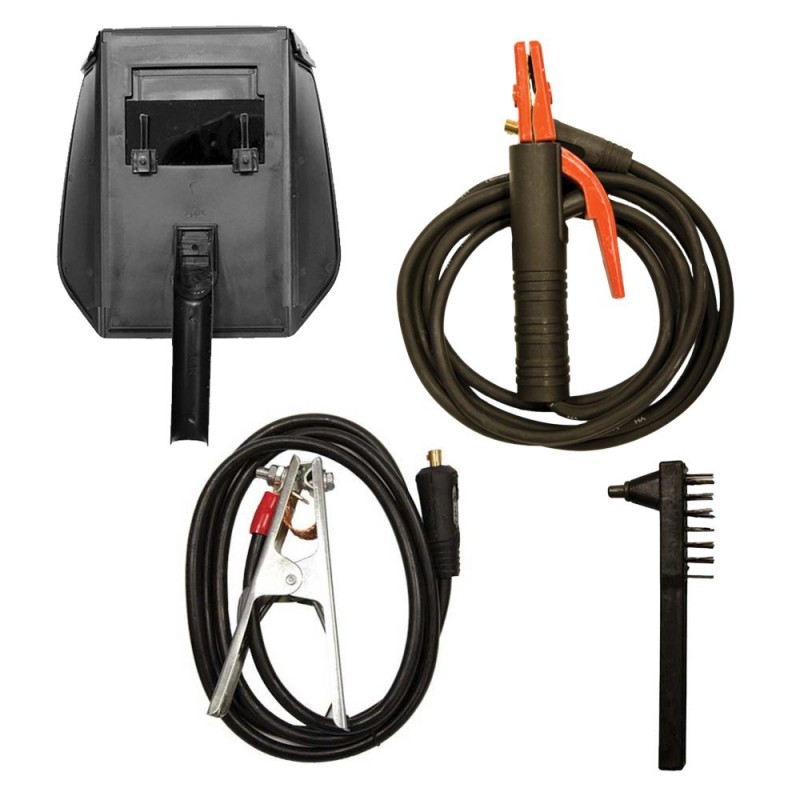

Standard equipment: Return cable kit length 1,5 m (16 mm2), MMA welding cable kit length 1,5m, Brush
